Seamless Paint Booth Operations & Data Synchronization
Unify paint booth operations with real-time data synchronization, automated validation, and seamless ERP integration.
SOLUTION OVERVIEW
How the Paint Booth Integration System Works
The Assembly Paint Booth is the stage where the vehicle body is cleaned, coated, and painted before final assembly. It includes processes like surface preparation, primer application, color coating, and drying. This system ensures the vehicle meets visual and corrosion protection standards. It plays a critical role in product quality and appearance.
Where Paint Booth Operations Break Without Integration
Even minor sequencing gaps can lead to major production inefficiencies, rework, and delays.
Incorrect Paint Sequencing Execution
Mismatch between planned color sequence and actual booth flow leads to unnecessary color changes, increased paint waste, and production delays.
Color Change Inefficiencies
Lack of optimized sequencing increases frequent color switches, causing downtime, excess solvent usage, and reduced booth efficiency.
Unvalidated Parts Entering the Booth
Parts without proper validation (color, model, or surface readiness) enter the booth, resulting in defects, rejects, or reprocessing.
Poor Synchronization with Conveyor & Line Speed
Paint booth operations fall out of sync with conveyor movement, leading to missed cycles, improper coating, or bottlenecks.
No Real-Time Booth & Production Visibility
Supervisors lack live tracking of painted units, color usage, and booth status, making it difficult to detect issues early.
Disconnected ERP and Paint Booth Data
ERP schedules and actual booth execution don’t align, causing tracking gaps, incorrect reporting, and poor decision-making.
End-to-End Workflow Integration
A structured, validation-first process that transforms raw OEM data into accurate, error-free execution across every stage.
PLC
Capture and register real-time OEM signals from machines and production lines.
SignalR
Process and validate incoming data streams against defined formats and business rules.
Backend
Structure, organize, and ensure accurate sequencing of validated production data.
Validation
Assign optimized storage locations or movement paths based on system logic.
Alert
Trigger automated PLC actions and notify systems for required operations.
Dashboard
Review, confirm, and finalize shipment data with full operational visibility.
KEY FEATURES
Core Capabilities of the Paint Booth Integration System
Powering accurate paint execution with real-time tracking, validation logic, and production visibility across the paint line.
Tracking of painted units and production count
Monitoring of paint booth output against planned production
Identification of pending or delayed units in the paint process
Status visibility of units processed through the paint stage

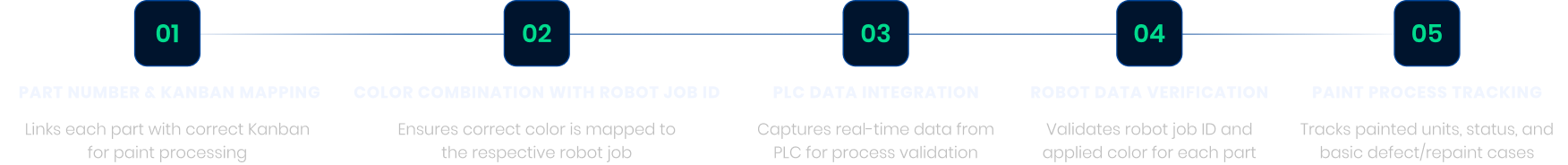

Go Live in 5 Structured Phases
A phased deployment approach ensuring smooth adoption, minimal disruption, and rapid alignment with existing production systems.

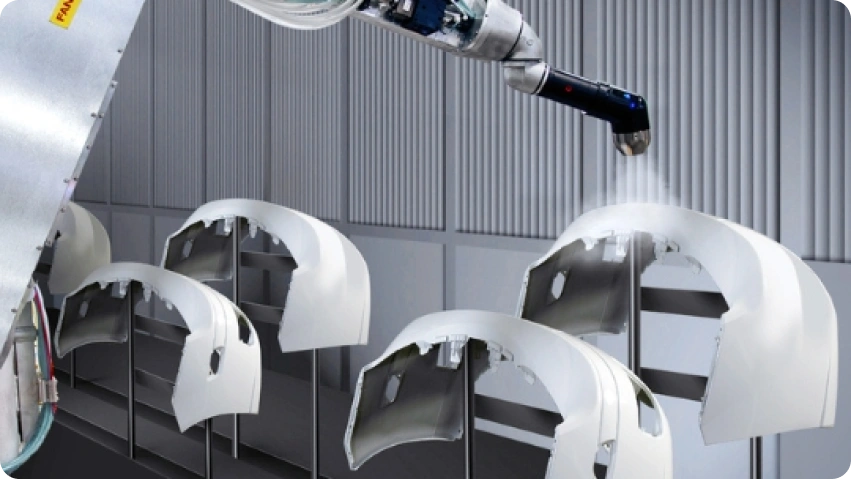

Why Paint Booth Integration is Critical for Quality & Efficiency
Paint quality and correct color application are critical for product acceptance. With PLC + Python validation, your system ensures that the paint process data and color verification are monitored accurately.

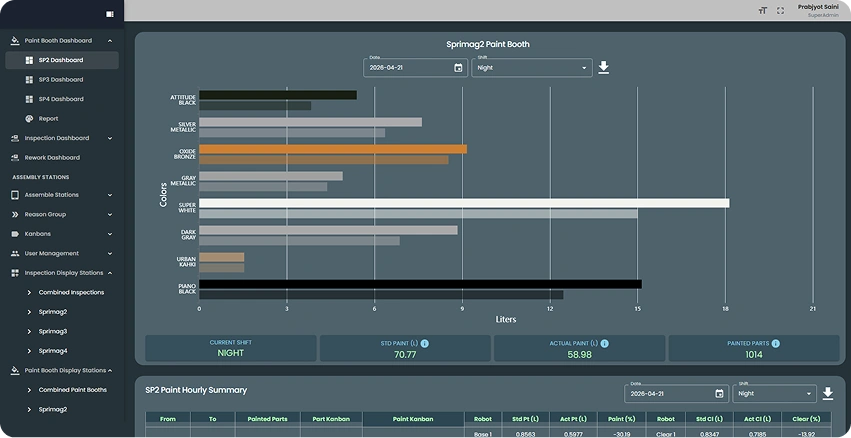

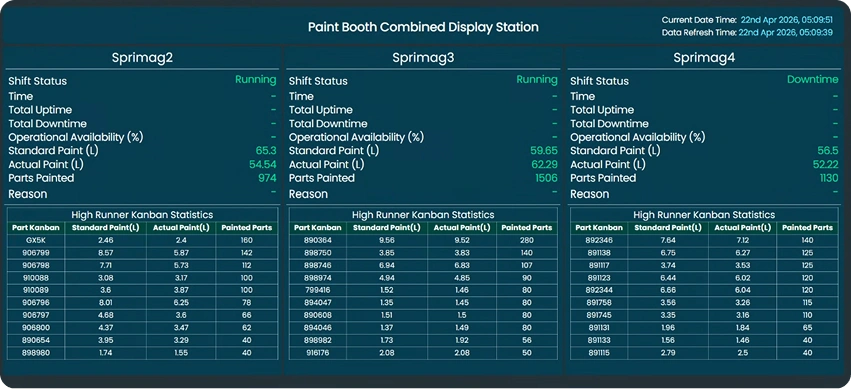

Visuals Of Solutions
Validate Your Paint Booth Integration
Before It Impacts Production
Measurable Impact of Paint Booth Integration
Improve paint quality, reduce operational costs, and enhance traceability with a data-driven paint booth ecosystem.
